Diesel Dri-Prime Pumps - CD75MA5
The Godwin Dri-Prime 2" x 3" (50mmx75mm) CD75MA5 automatic priming centrifugal pump is the diesel equivalent of the gasoline-powered pump found on small dewatering jobs. Able to prime to 28 feet (8.5 meters) of suction lift from dry, the CD75MA5 also features indefinite dry-running capabilities due to the unique Godwin oil bath mechanical seal design. The model CD75MA5 offers flowrates to 370 gallons per minute (23 l/sec.), heads to 110 feet (33.5 meters), and capability of handling solids to 1-5/8" (41mm) in diameter. The CD75MA5 features a two cylinder diesel engine model generating over 11 horsepower (8.2 kw). Available on a handy site trolley or mounted on a highway trailer.

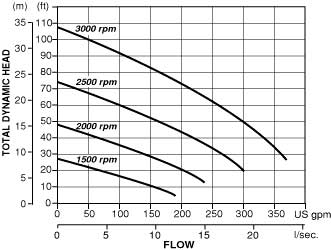

Performance Chart
 |
Download Spec Sheet |
