Diesel Dri-Prime Pumps - CD225MV

The CD225MV is a portable wellpoint system designed for a wide range of on-site dewatering applications. The CD225MV offers flow rates up to 3100 gpm (196 l/sec.), total heads to 180 feet (54.9M), and can handle solids up to 3-1/8" (79mm) in diameter. Based on the popular, industry-standard CD225M Dri-Prime® Pump, the CD225MV offers convenient automatic self priming and indefinite dry running capabilities that contractors, municipalities, industry and environmental companies across the country have come to rely on. The CD225MV consists of a centrifugal, single stage end suction pump, a high volume, belt driven vacuum pump, and a single action, float actuated air water separation tank. A reliable and efficient John Deere 4045T or Caterpillar 3054TA diesel engine powers both pump and vacuum components. An integral 105 gallon (397 liter) fuel tank within the skid provides up to 21 hours of continuous wellpoint operation. Additionally, the CD225MV operates with the full line of Godwin Wellpoint pipe and fittings including Quick Disconnect header pipes, riser pipes and adaptors, swing arm assemblies, and stainless steel, self-jetting wellpoint screens.

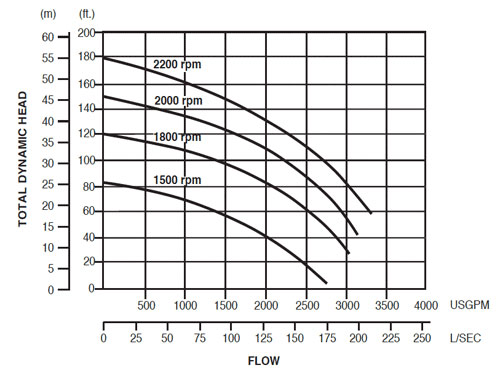

Performance Chart

Download Spec Sheet
