Diesel Dri-Prime Pumps - CD180M
The 8" (200mm) by 6" (150mm) CD180M portable diesel pump offers both elevated heads and solids handling capabilities without sacrificing flow rate. The pump achieves total dynamic heads to 260 feet (80 m), solids handling to 3" (75mm) in diameter, and flows to 2000 GPM (450 m3/h).
The CD180M is an automatic self-priming Dri-Prime pump with the ability to prime and re-prime from dry. Featuring an oil bath mechanical seal, this pump runs dry without damage, ideal for intermittent flow conditions associated with bypass pumping and backup municipal lift station applications. The CD180M complements Godwin’s elevated head series of high volume solids handling pumps.

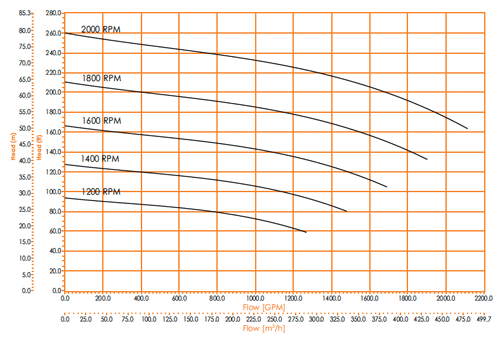

Performance Chart
 |
Download Spec Sheet |
